Cold Runner Bull Indonesia 3 Wireless Socket Top Cover Injection Mould

Name	Cold Runner Bull Indonesia 3 Wireless Socket Top Cover Mould
Material	PC(Shrinkage:1.4%)
Product Size	1875638.5㎜
Cavities Material	8402
Cold Runner/Hot Runner	The Cold Runner Hides The Glue
Mould size	450450451㎜
Mould Weight	650㎏
Type Of Injection Moulding Machine	HaiTian MA1600/540
Production Status	Already In Production
Mould Completion Time	35Days

Contact now

PRODUCT DESCRIPTION

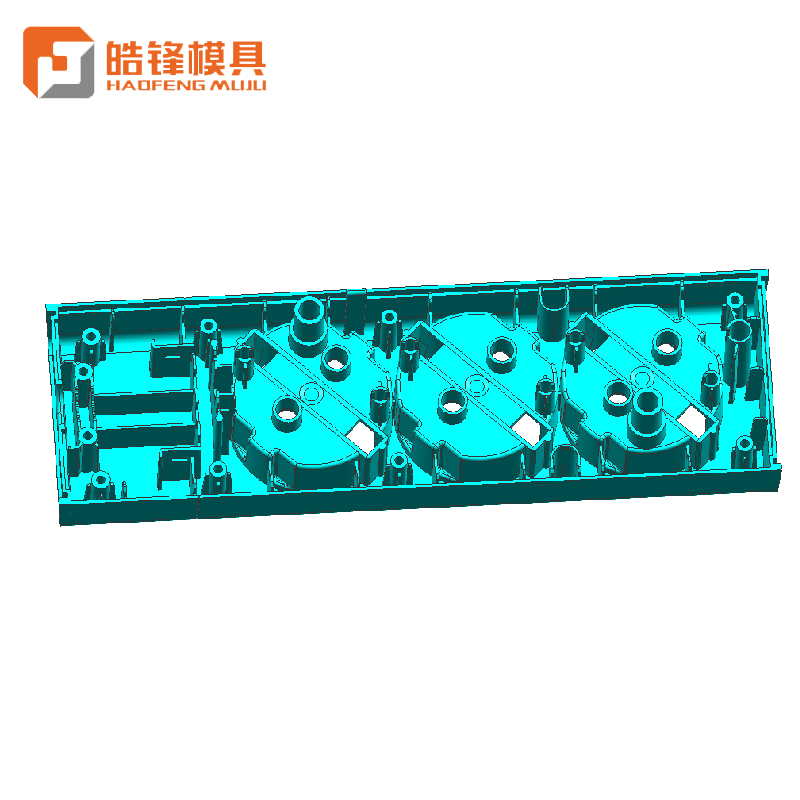

Product function:Bulls Indonesia 3 wireless socket cover is an Indonesian socket cover equipped with copper parts. Indonesia socket cover and the lower cover and other products need to be assembled with each other.

Mould for top cover of 3 socket of cold runner boar Indonesia:

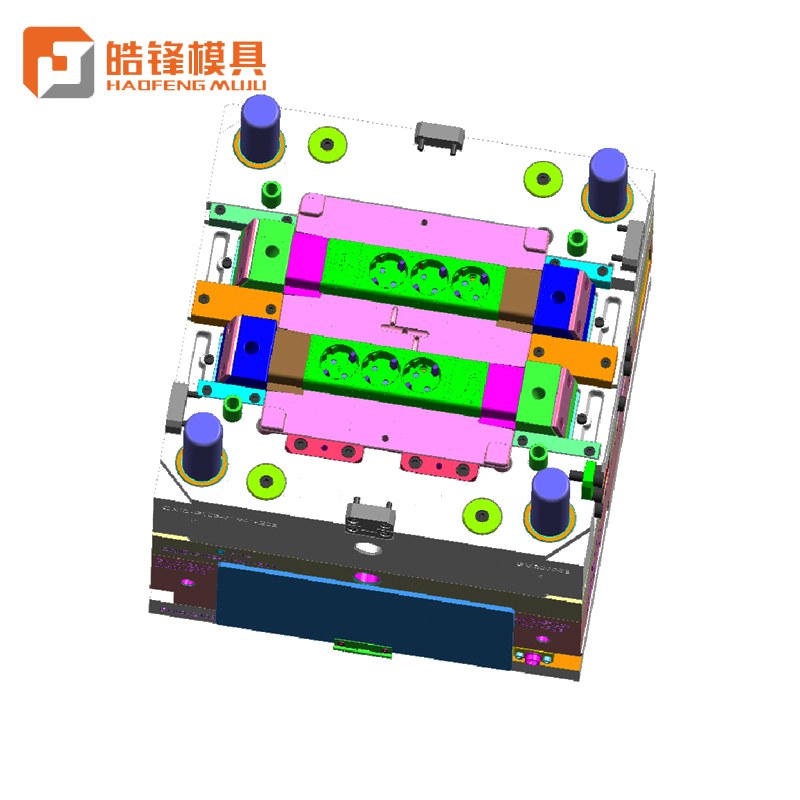

1: For the mould structure of the upper cover of the Bull socket in Indonesia, the lower die backing plate should be opened first, the lower die inserts should be core-pulled, and the lower die sliders should be 4 pieces.

2: The average wall thickness of the product is 2.0mm. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause uneven parts and affect the manufacturing accuracy.

3: The average wall thickness of the reinforcing bars is 1.0mm. The larger the demoulding Angle is, the easier it is to demoulding the parts, but it is easy to cause the top bars of the parts to be too thin and cause the product to lack glue.

4: In the mould design of the product parting surface, try to ensure the appearance quality of the product. The parting surface is set on the invisible side, so as not to affect the processing error or the flash edge of the mould production after long-term production.
