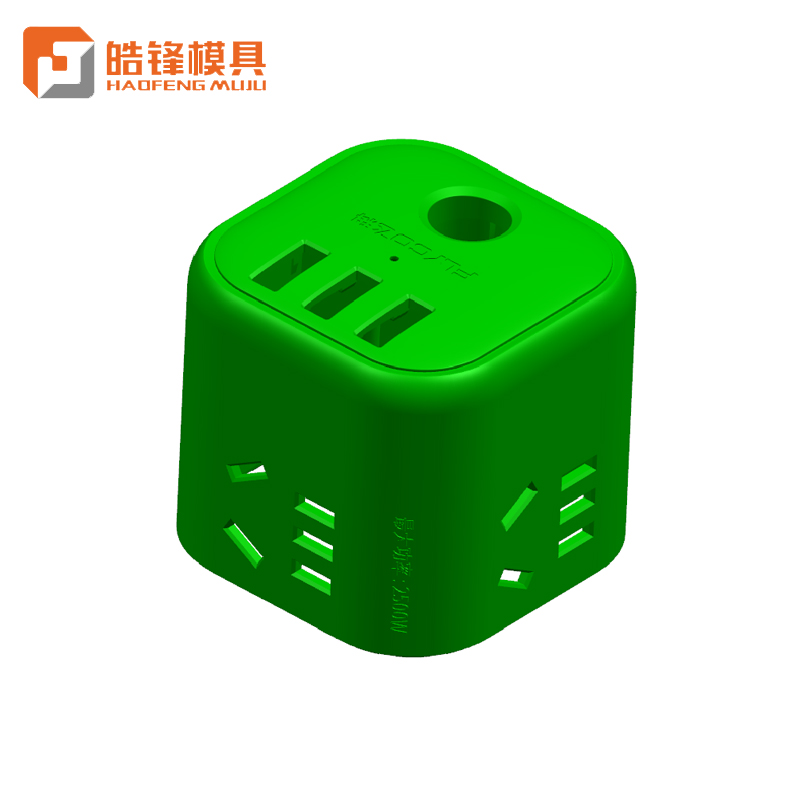

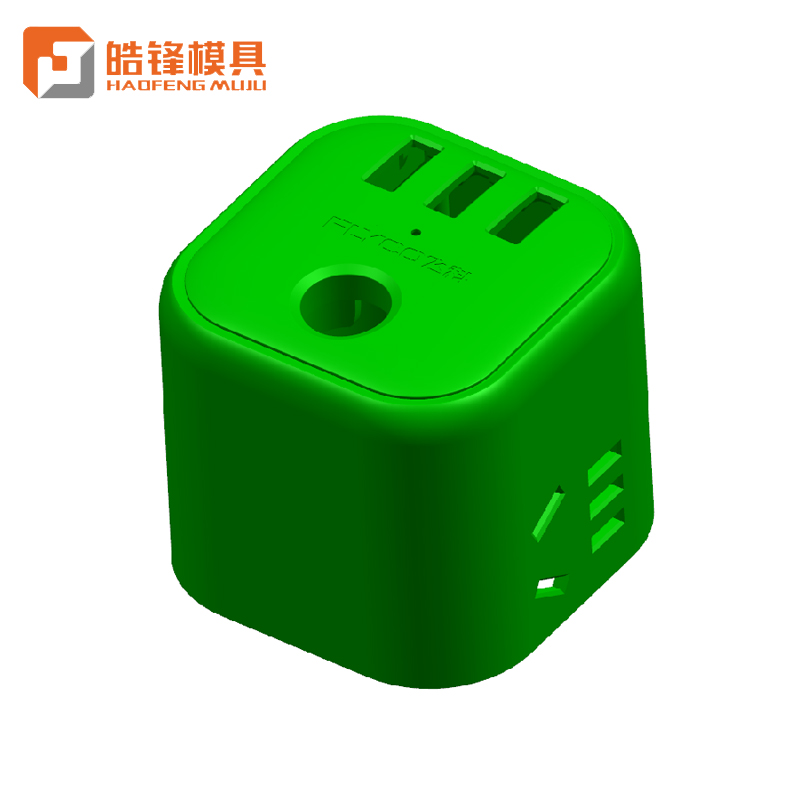

Fico Open Hot Runner FS2097- Rubik's Cube Top Cover Injection Mould

Name	Fico Open Hot Runner FS2097- Rubik's Cube Top Cover
Material	PC(Shrinkage:0.5%)
Product Size	734761㎜
Cavities Material	8402
Cold Runner/Hot Runner	Open Hot Runner Turns Into Latent Glue
Mould size	750450546㎜
Mould Weight	1200㎏
Type Of Injection Moulding Machine	HaiTian MA2800/1350
Production Status	Already In Production
Mould Completion Time	45Days

Contact now

PRODUCT DESCRIPTION

Product function:Three-dimensional integration structure, save space, plug three-dimensional arrangement of each other.

Fico Open Hot Runner FS2097- Rubik's Cube Top Cover:

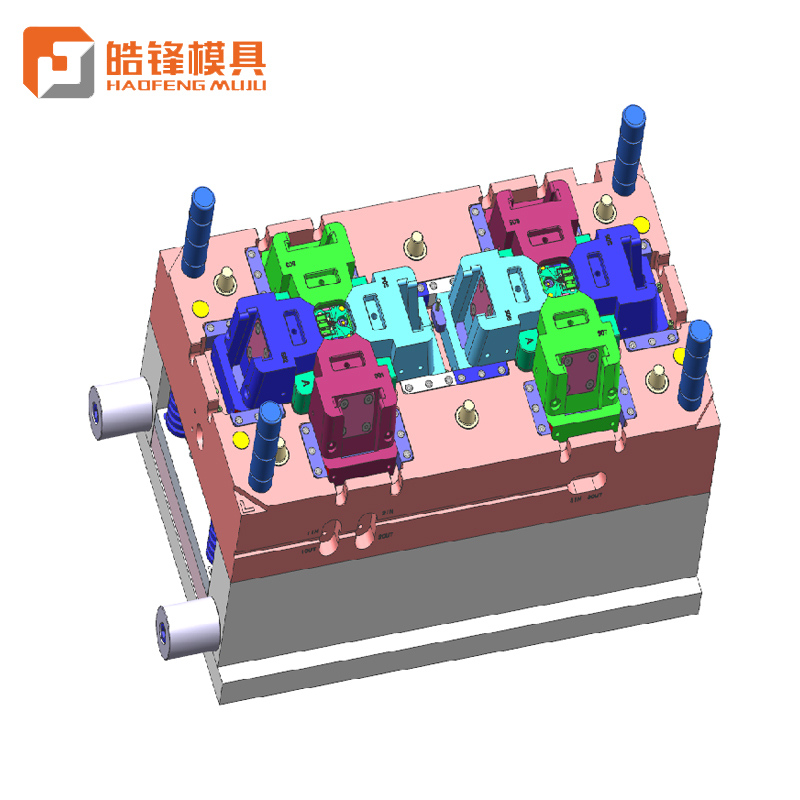

1: 4 sides of the mould structure are sliders, 1 out 2 holes, a total of 8 sliders, injection molding machine forced reset.

2: When the slider is made, the accuracy is very high, and it must be controlled within 0.01mm, because it is the A-side parting line.

3: The skin grain of product A surface requires fine pitting surface. The pitting surface of product A surface with 8 sliders and front die kernel must be consistent.

4: The bottom of the product has ultrasonic structure, processing, the accuracy is very high.
